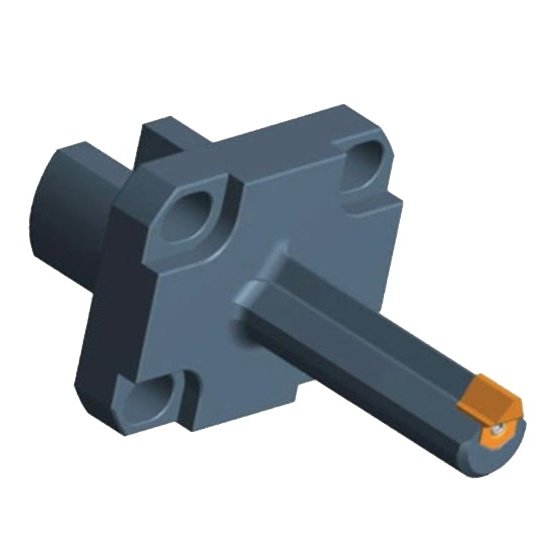

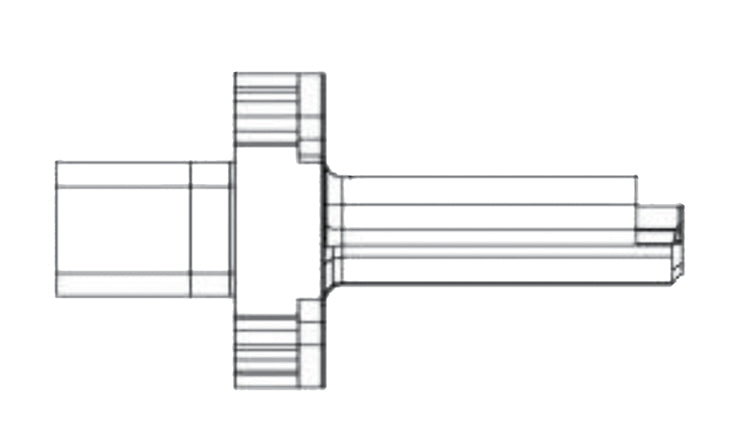

duMONT CNC-10039-MH-Spline 35 Series Insert Holder

Name: duMONT CNC-10039-MH-Spline 35 Series Insert Holder
Brand: duMONT CNC
SKU: 10039
Price: 548.4 USD
Availability: InStock

SKU 10039

by duMONT CNC

$548.40 - $548.40

$548.40

$548.40 - $548.40

$548.40

Description

duMONT CNC-10039-MH-Spline 35 Series Insert Holder |

Specs

centering plate:

CP-3

description tool holder size:

10-35

MANUFACTURER:

duMONT CNC

minimum bore dia mm:

24.0

mounting screw:

MS-3

neck length mm:

13.0

overall length mm:

79.0

shank Diameter mm:

35.0

shank length mm:

20.0

stem dia d2 mm:

22.0

stem length l1 mm:

46.0

torx driver:

T-20
