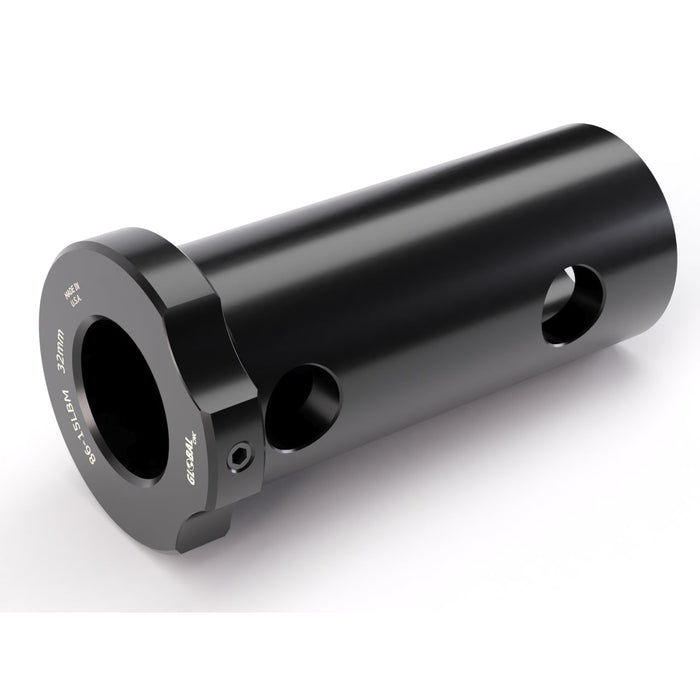

GLOBAL CNC 50MM OD X 3/4" ID LB STYLE BUSHING | Global CNC’s type LB Tool Holder Bushings are designed with a long solid body that has four clearance holes allowing you to clamp directly on the tool with the set screws. They feature two notches in the head to allow for coolant nozzle clearance. They are used to adapt a wide variety of Boring Bars, Drills, Reamers and Shank type tools. • Hardened and precision ground concentric • Black Oxide Coating • Made in the USA

HEAD THICKNESS D:

0.5

HOLE DIMENSION C:

2.75

HOLE DIMENSION D:

0.5

HOLE DIMENSION E:

2.75

HOLE SIZE F:

0.667

INTERNAL DIAMETER B:

0.75

LENGTH UNDER HEAD C:

4.5

MANUFACTURER:

GLOBAL CNC

NUM HOLES:

4

OUTSIDE DIAMETER A:

50mm

Product Description:

Global CNC’s type LB Tool Holder Bushings are designed with a long solid body that has four clearance holes allowing you to clamp directly on the tool with the set screws. They feature two notches in the head to allow for coolant nozzle clearance. They are used to adapt a wide variety of Boring Bars, Drills, Reamers and Shank type tools. • Hardened and precision ground concentric • Black Oxide Coating • Made in the USA

PRODUCT SUBCATAGORY:

LB STYLE

toolholder style:

LB STYLE
